Battery block with a capacity of 5.12 kWh and a voltage of 48 V is an excellent option for high power conditions. Created using lithium technology, it features an integrated balancing and monitoring system.

It is optimally used within a temperature range of 0 … +50 degrees Celsius. With discharges at 80%, it achieves 6 thousand cycles of operation.

Specifications:

48 Volts – standard voltage.
5,120 Watt*h – capacity (nominal).
46.8 … 58.4 Volts – discharge voltage.
from 55.2 to 57.6 Volts – charge voltage.
100 Amperes – maximum discharge current.
50 Amperes – maximum charge current.
150 Amperes – peak discharge current (1 sec).
Installation – wall-mounted.
5 years – warranty for discharge cycles up to 80%.
Full information – in the PDF file (Specification).

Package includes:

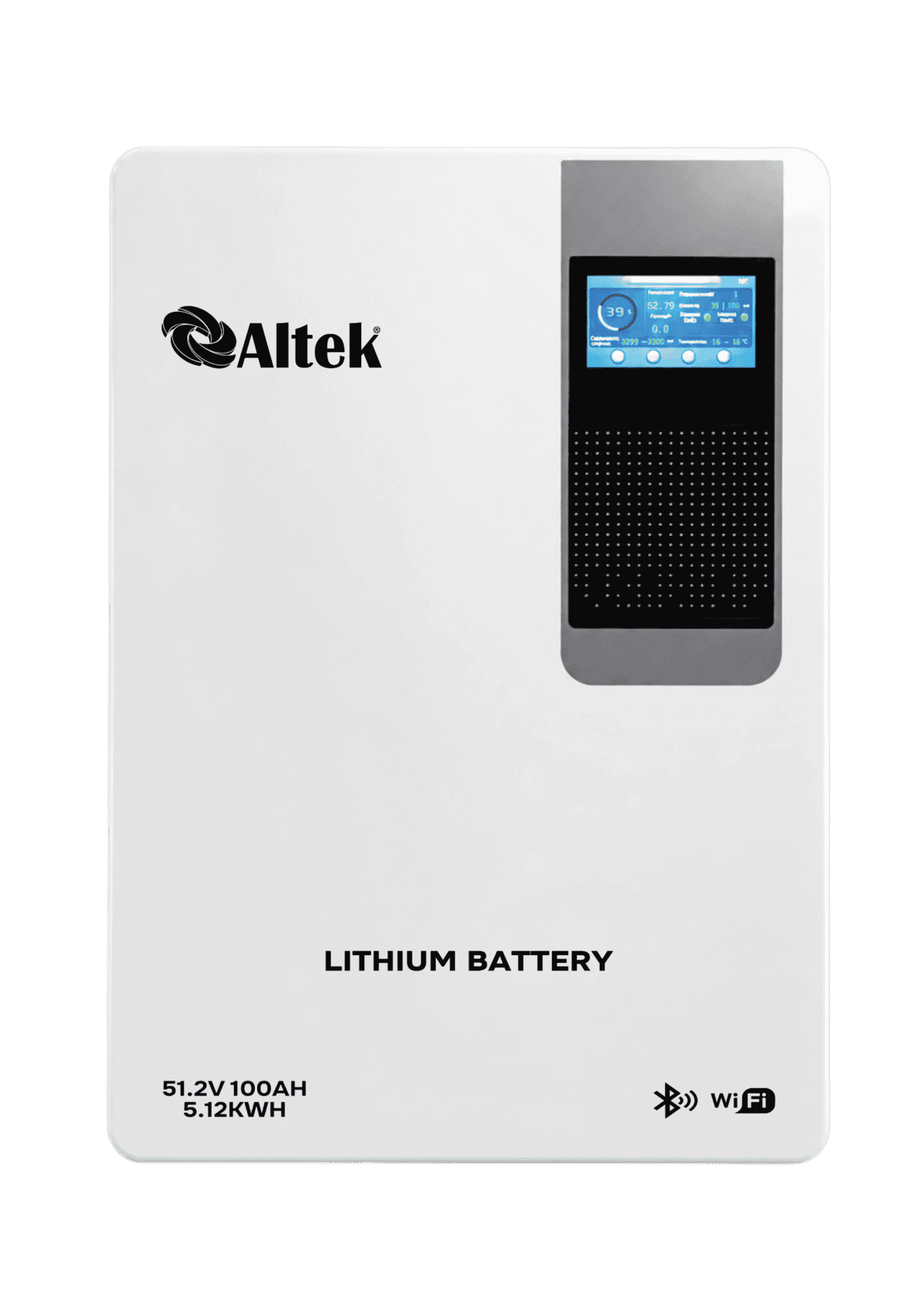

Atlas – version 48V B3 5.12 (brand Altek)
Documentation
Packaging
