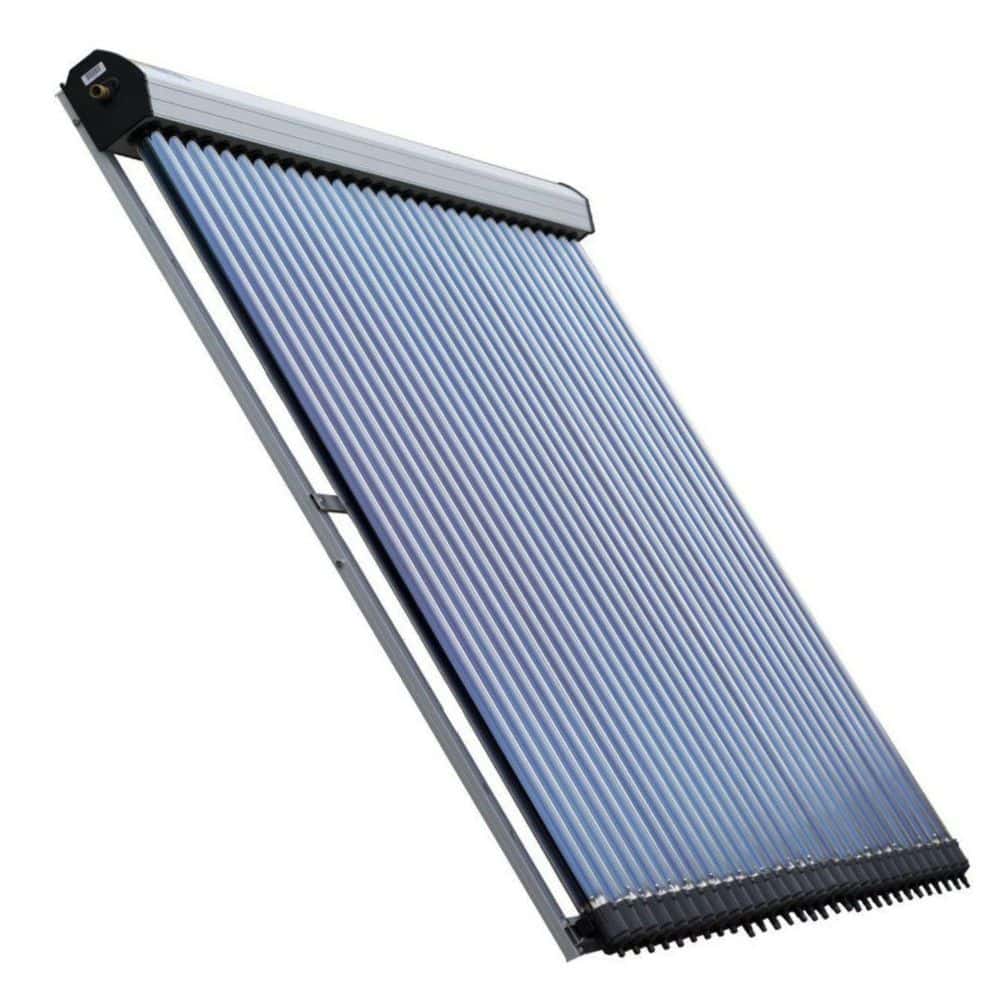

Вacuum solar collector Altek SC-LH3-30 consists of vacuum tubes of the Heat Pipe system with a condenser diameter of 24 mm, designed for heating liquid (water or propylene glycol) for hot water supply and heating systems. The recommended volume of heated liquid is 275 – 325 liters.
SC-LH3-30 Configuration:
Manifold,
Vacuum tube set,
Assembly kit (bolts, nuts)
SPECIFICATIONS
Usage mode – year-round,
Recommended system capacity – 275 – 325 l.,
Vacuum tube – Heat pipe (ALN / AIN-SS / Cu) Ø58 * 1800 mm. Condenser Ø24 mm.,
Number of vacuum tubes – 30 pcs.,
Aperture area * – 2.82 m2
Installation location: pitched roof.
Maximum working pressure – 6 bar,
* Aperture area (aperture area) – is the area with the maximum projection on which solar radiation falls.
